Abu have produced
reel cages, spools, star wheels, side plates, end caps and even line guides (as
well as handles) for Ambassadeurs in various styles and colours. So, if you are
the kind of person who likes to use tackle that looks a little different, swapping
components around from various models of Ambassadeur can create distinctive looking
reels. This might not make any difference to your catch rates, but it's a bit
of harmless fun. The hard part is tracking these parts down! There are also replacement
parts available from other sources, some of which are listed on the links
page. Of course, you can customise your
reels in ways that might not make them look any different, but will make them
perform better as fishing tools. I have yet to go down the road of loading the
gears with a toothpaste/grease mix and power spinning them to make them smoother
meshing, but I have tried the following modifications.... |
|

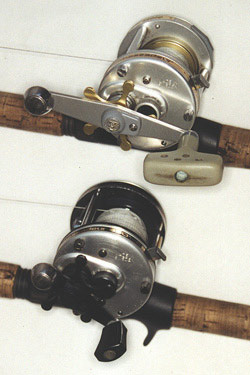

The most common modification made to Ambassadeurs (other than throwing
away that annoying thumb rest) is a change of handle. For cranking techniques
a Power Handle is recommended. Various colours are available so you should be
able to find one to match the reel you want to fit it to. There is also a 'Japanese'
version which, while looking smart with its cutaways and having a better spindle
construction, is, apparently, prone to bending. The
short counterbalanced handle with the hard, flattish grip, is good for jerkbaiting
and twitching techniques as it speeds the reel up a little to take up slack line.
Also, the short counterbalanced side of the handle doesn't get tangled up in your
clothing like the second grip on a standard dual grip handle can do! If
you don't like the rubbery, flat grips that are fitted to most Ambassadeurs these
days (the grips have been known to pull off some versions when making a powerful
strike!) then an older style handle with the hard, round grips can be fitted. There
have been a number of handle nuts and caps used over the years, but the chromed
cap-nut (24104), retaining plate (20944) and screw (301) will fit most current
Abu handles and look pretty good too - but you might have difficulty locating
the cap-nut in the UK. The short counterbalanced handle will need an alternative
plate, as the screw hole is closer to the nut. There
are handle sources on the links page. |
FITTING A DUAL BEARING LEVELWIND |
Since
the introduction of dual bearing levelwinds, there isn't much point considering
upgrading a standard levelwind to a single bearing one. if you can't get a dual
bearing levelwind locally, try Hatteras Outfitters who
usually have them in stock. Method
Undo cap from levelwind and remove pawl. Remove
right hand side plate - taking care of the clicker mechanism (if your reel has
one fitted) and its two plastic spacers. Flip up levelwind retaining plate and
remove levelwind worm gear and shroud. Fit new worm into new shroud and push the
new bearing into the other end of the shroud (the end with the cut-out). Lightly
oiling the levelwind bearings before fitting the entire assembly. Ensure that
the top of the line guide is correctly situated in the guide groove. Lock levelwind
in place with retaining plate. Refit pawl and cap, oil levelwind worm. Refit side
plate. Clicker side plates can be fiddly to refit and will need a bit of jiggling
to get them correctly located - the precise technique depending on the style of
clicker fitted. Result
The levelwind is certainly easier to move with two
bearings in it - you can push it across by hand even when the reel is in gear.
I am pretty well convinced that this does make for a smoother feeling reel. Whether
it adds to casting distance I cannot say, but it certainly doesn't cut it down!
|
FITTING A SMOOTHIE DRAG (IAR
4001, 5001 and 6001 series reels) |
You can simply replace
the fibre drag washers with Smoothies or Xtreme Smoothies, or you can replace
both the fibre and the metal ones. Smoothie ground and lapped metal washers are
noticeably smoother than the factory washers. The following instructions are for
fitting both fibre and metal replacements. Method
Remove handle, star wheel, and left hand side plate.
Remove main drive shaft assembly and take off all drag washers (20960, 20907 x
3, 2095, 2096), and the main drive gear to access the washer (13169) below it.
Clean drive shaft and gear with lighter fuel or a degreasing agent. Fit the Smoothie
washers in the correct order. The domed factory fitted washer (20960) is replaced
by a thick flat washer and a rounded washer - ensure the rounded washer is above
the flat washer. Do not oil or grease any of the new drag washers. Refit
main drive shaft assembly and side plate - ensure that the sleeve (22001) is refitted
with the semi-closed end uppermost. Refit star wheel and handle. Result
A non-jerky drag that can be tightened up without locking entirely. If the Smoothie
drag ceases to be smooth, strip it down, degrease, dry and refit.
|
FITTING NEW SPOOL BEARINGS (Non-UC
ultracast spool, 4/5/6001 series reels) |
When your spool bearings get worn out
there is the option of replacing them with Abu factory bearings or upgrading them
with ABEC rated bearings or the new ceramic 'Rocket Bearings'. The method of replacement
is identical for all types. Bearings come in standard sizes, so look up your local
bearing dealer in the Yellow Pages and take along the ones from your reel - they'll
have some to match. You can also fit bearings to reels that don't have them, but
are fitted with bronze bushings. Method
Take the new bearings, clean them in lighter fuel,
dry them off and spin them to make sure they are free running before starting
work. Oil the new bearings with a couple of drops of Yellow Label Rocket Fuel.
Remove left hand side plate and remove spool. Take the nylon cog off one end of
the spool and remove bearing, replacing it with one new bearing. Make sure to
place the old bearings somewhere well away from the new ones so you don't get
them mixed up! Refit the nylon cog ensuring it is firmly in place. Carefully take
retaining clip out from other end of spool, remove brake block holder. Drop out
old bearing, making sure the washer underneath it isn't lost, and fit second new
bearing. Refit brake holder and retaining clip. Pop spool back on spindle and
refit right hand side plate. Result
This will depend on the type of bearing you have
fitted. Standard Abu bearings will simply return the reel to its original status,
upgraded bearings make the spool faster. Ceramic bearings, for instance, should
increase casting distance - if you can control the faster reel and avoid backlashes...
|
|
While changing handles is one
answer to lure speed control, you can also avoid the extra expense of buying a
completely new reel to get faster or slower gearing - simply by fitting new gears!
You will need both the main drive gear and the pinion gear for the ratio you want.
Consult schematics for part numbers, or check out sources on the links
page. |
Instructions
for performing a complete strip-down of a 6501C3 can be found from the maintenance
page. |
ADDING
BEARINGS TO A 7001 |
Parts required: 2 x spindle bearing
- 5230 1 x handle shaft bearing - 21591 2 x handle shaft bearing washer
- 21592 1 x handle shaft spring washer - 6956 Schematic - highlighting parts involved in the modification.
| |
Method Remove
right hand side plate and bearing cap. Remove bushing retaining clip (5229) and
push out bronze bushing (13244). Fit one bearing (5230), replace clip and cap.
Refit side plate. Remove handle, star
wheel and left hand side plate. Remove bearing cover cap from side plate, push
out bronze bushing (13244) and replace with bearing (5230), replace cap. Remove
plastic bushing (21601) from main drive shaft. Fit dished spring washer (6956).
NB: the schematic diagram shows two washers in place (25475, 6953), but my reel
had only one dished spring washer, placed concave side up, which I turned around
before fitting the spring washer (6956) - the drag appears to function normally.
Fit first bearing washer (21592), bearing (21591) and second bearing washer. Replace
side plate, star wheel and handle. Result
A quieter and more free running reel that should last longer before
major surgery is required. Review
